Introduction

bvarnet uses the No-U-Turn Sampler (NUTS), a variant of Hamiltonian Monte Carlo (HMC), via CmdStan. Unlike simple Metropolis-Hastings, NUTS adapts the step-size and trajectory length automatically during a warmup phase, making it very efficient for the high-dimensional, correlated posteriors typical of multilevel VAR models. Even so, every MCMC analysis should pass a set of standard diagnostic checks before results are interpreted.

This vignette covers:

  1. Fitting a model with sensible defaults
  2. Convergence diagnostics: R-hat and Effective Sample Size
  3. Trace plots for visual inspection
  4. Sampler-level warnings: divergences and exceeded tree depth
  5. Tuning the sampler via iter, warmup, adapt_delta, and max_treedepth

For a deeper treatment of HMC/NUTS theory and every diagnostic described here, see the Stan Reference Manual — MCMC Sampling and the community Stan Wiki.

Fitting a Reference Model

We reuse the five-variable ordinal model from vignette("bvarnet"). The same studentlife data are used throughout.

data(studentlife)

priors <- set_priors(
  phi   = prior(family = "normal", loc = 0, scale = 0.5),
  kappa = prior(family = "normal", loc = 0, scale = 1)
)
fit <- bvar(
  id_col   = "id",
  time_col = "day",
  y_cols   = c("anxious", "calm", "conventional", "critical", "dependable"),
  K        = 1,
  data     = studentlife,
  family   = "ordinal",
  priors   = priors,
  iter     = 4000,
  warmup   = 1000,
  chains   = 4,
  cores    = 4,
  seed     = 1337
)
print(fit)
#> BVAR Network fit
#> ========================================
#> Family:      ordinal
#> Outcomes (p): 5
#> Lags (K):     1
#> Fixed eff.:   0
#> Observations: 147
#> Rhat max:    1.001
#> Divergences: 1  WARNING: check model/priors.
#> Priors:
#>   beta   ~ Normal(0, 1)  (default)
#>   phi    ~ Normal(0, 0.5)
#>   kappa  ~ Normal(0, 1)
#> Total time:  20.2 sec
#> ========================================

R-hat: Between-Chain Convergence

R-hat (R̂\hat{R}) measures whether independent chains have converged to the same distribution by comparing within-chain to between-chain variance. A value of R̂≈1\hat{R} \approx 1 indicates that all chains are exploring the same region of parameter space.

Rule of thumb: R̂≤1.01\hat{R} \leq 1.01 is the modern criterion. Values above 1.01 suggest the chains have not converged and longer sampling is needed.

The convergence table is stored in fit$convergence as a data frame with one row per parameter, alongside bulk-ESS and tail-ESS.

head(fit$convergence)
#>   variable      rhat ess_bulk  ess_tail
#> 1     lp__ 1.0006264  5807.04  8763.894
#> 2 phi[1,1] 1.0002434 19633.01 11959.170
#> 3 phi[2,1] 0.9999424 16400.52 11459.448
#> 4 phi[3,1] 0.9999472 19919.94 12271.959
#> 5 phi[4,1] 1.0001548 29249.05 11530.322
#> 6 phi[5,1] 1.0000761 18623.57 12379.016

A quick summary of the R-hat distribution across all parameters:

rhat_vals <- fit$convergence$rhat
summary(rhat_vals)
#>    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
#>  0.9999  1.0000  1.0001  1.0001  1.0002  1.0007

Effective Sample Size (ESS)

Even though NUTS chains produce correlated samples, the Effective Sample Size (ESS) measures how many independent draws the correlated sequence is worth. bvarnet stores two variants:

Statistic Targets Minimum recommended
ess_bulk Central tendency (mean, median) ≥400\geq 400
ess_tail Tail quantiles, credible interval bounds ≥400\geq 400
ess_bulk <- fit$convergence$ess_bulk
ess_tail <- fit$convergence$ess_tail

cat("Bulk ESS — min:", round(min(ess_bulk, na.rm = TRUE)),
    "  median:", round(median(ess_bulk, na.rm = TRUE)), "\n")
#> Bulk ESS — min: 5807   median: 18210
cat("Tail ESS — min:", round(min(ess_tail, na.rm = TRUE)),
    "  median:", round(median(ess_tail, na.rm = TRUE)), "\n")
#> Tail ESS — min: 8764   median: 12304
cat("Parameters with bulk ESS < 400:", sum(ess_bulk < 400, na.rm = TRUE), "\n")
#> Parameters with bulk ESS < 400: 0

Trace Plots

A trace plot shows the sampled value of a parameter at each iteration for every chain. Healthy chains look like a fuzzy caterpillar, they mix rapidly and all chains overlap. Trends, spikes, or chains that stay separated indicate sampling problems.

To investigate the trace plots, we can use the mcmc_trace() from the bayesplot package.

phi_pars <- grep("^phi", dimnames(fit$draws)[[3]], value = TRUE)[1:6] # select some lag-coefficient parameters

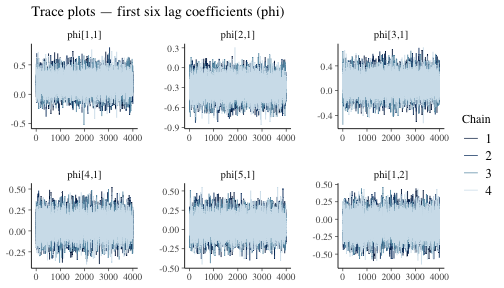

mcmc_trace(fit$draws, pars = phi_pars) +
  ggplot2::labs(title = "Trace plots — first six lag coefficients (phi)")
plot of chunk trace-phi
plot of chunk trace-phi

Complementary density overlay plots show whether chain-specific posteriors are consistent:

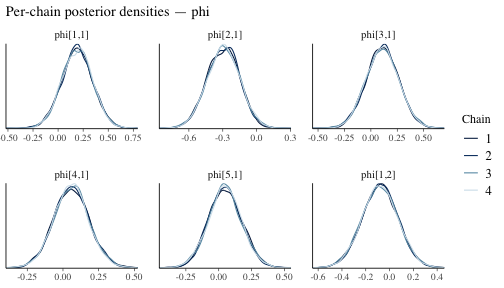

mcmc_dens_overlay(fit$draws, pars = phi_pars) +
  ggplot2::labs(title = "Per-chain posterior densities — phi")
plot of chunk density-phi
plot of chunk density-phi

We can do this for any sampled parameter, for example the threshold parameter kappa:

kappa_pars <- grep("^kappa", dimnames(fit$draws)[[3]], value = TRUE)[1:4]

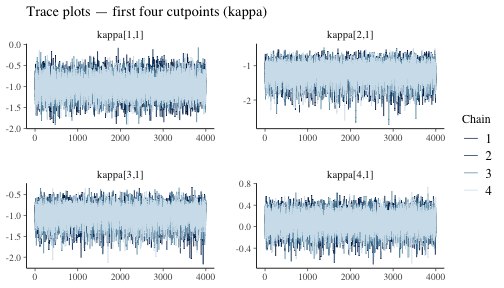

mcmc_trace(fit$draws, pars = kappa_pars) +
  ggplot2::labs(title = "Trace plots — first four cutpoints (kappa)")
plot of chunk trace-kappa
plot of chunk trace-kappa

Sampler Diagnostics: Divergences and Exceeded Tree Depth

Stan’s NUTS sampler reports two additional per-chain diagnostics stored in fit$diagnostics:

fit$diagnostics
#>   num_divergent num_max_treedepth     ebfmi
#> 1             0                 0 0.8941142
#> 2             0                 0 0.9862093
#> 3             0                 0 0.9318894
#> 4             1                 0 0.9390785

Divergences

A divergence occurs when the numerical integrator of HMC deviates from the true Hamiltonian trajectory. Even a small number of divergences can indicate that the sampler is missing regions of the posterior, leading to biased estimates. They should not be ignored!

Common causes and remedies:

  • Funnel-shaped posterior (common in hierarchical models)
  • Step size too large: increase adapt_delta towards 1 (see below).
  • Model misspecification: revisit the prior scale or model structure.

Exceeded Tree Depth

To draw each new sample, NUTS simulates a trajectory through parameter space, taking small steps and deciding when to turn around. The max_treedepth argument (default 10) sets a hard limit on how long that trajectory can be. When this warning appears, it means the sampler wanted to keep exploring but was cut off — it hit the limit before it was ready to stop. Unlike divergences, this does not mean the results are biased. It is a slowness warning: the sampler is doing extra work to produce each draw, so your effective sample size per hour of compute time is lower than it could be. Increasing max_treedepth gives the sampler more room to move, which typically resolves the warning.

Tuning the Sampler

Chain Length: iter and warmup

bvar() exposes two length arguments:

Argument Default Role
warmup 1000 Iterations used for adaptation (step-size, mass matrix). Discarded from inference.
iter 4000 Post-warmup (sampling) iterations per chain. Used for inference.

The total number of draws available for inference is iter × chains (16 000 with the defaults above). Increasing iter directly improves ESS at a proportional computational cost. Increasing warmup can help when the sampler struggles to find the typical set (visible as a long burn-in in trace plots).

adapt_delta: Controlling Divergences

adapt_delta (default 0.80) is the target acceptance rate that Stan’s dual-averaging algorithm uses when adapting the step size during warmup. A higher target forces a smaller step size, which reduces discretisation error and typically eliminates divergences.

Trade-off: smaller step sizes mean shorter trajectories per unit time, so ESS per second decreases. Increase adapt_delta only when you observe divergences; do not set it near 1 unless needed.

Typical values:

Situation adapt_delta
Default / no divergences 0.80 (CmdStan default)
Some divergences 0.90–0.95
Persistent divergences in hierarchical models 0.97–0.99

For full details see the Stan reference on adapt_delta.

max_treedepth: Controlling Trajectory Length

max_treedepth (default 10) caps the doubling steps NUTS may take. The maximum trajectory length is 2max_treedepth2^{\text{max\_treedepth}} leapfrog steps.

Increase this when fit$diagnostics shows a non-trivial number of iterations hitting the tree-depth limit. Each additional level doubles compute time per affected iteration, so increases of 1–2 beyond the default are usually sufficient.

For full details see the Stan reference on max_treedepth.

Quick Checklist

Before reporting results from a bvarnet model:

  1. R-hat: all parameters ≤1.01\leq 1.01.
  2. ESS: ess_bulk and ess_tail ≥400\geq 400 for all parameters of interest.
  3. Trace plots: caterpillar-like mixing, no trends or stuck chains.
  4. Divergences: zero, or investigate with higher adapt_delta.
  5. Tree-depth warnings: none, or increase max_treedepth.
